| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 28573 |
| Brand | ARKTEK |
| Basic Information | ||
| Supported CPU | Support 11th/10th generation Comet Lake-S Corei9/Corei7/Corei5/Corei3/Pentium/Celeron series processors for LGA 1200 socket | |
| Chipset | Intel H510 Chipset | |
| Form Factor | Micro-ATX (22cm X 17 cm) | |
| Audio | 3.5mm Port, 5.1 Channel, LED Audio Support | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot 1 *PCI Express x1 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x Memory Slots | |
| Supported Memory | Dual Channel DDR4 2133/2400/2800MHz Support XMP overclock | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DP port | |
| USB (s) | 2 x USB 2.0 port 2 x USB 3.0 port |
|
| LAN Port (s) | Realtek 100/1000 Mbps LAN onboard | |
| Supported Storage | 3 X SATA3.0 6Gb/s M.2 (PCI-E 3.0 X4 NVME SSD | |
| Audio | 3 x Audio jack | |
| Internal I/O Ports | 3x USB connector, can support 4*USB 2.0 & 2*USB 3.0 | |
| Warranty Information | ||
| Manufacturing Warranty | 2 years | |

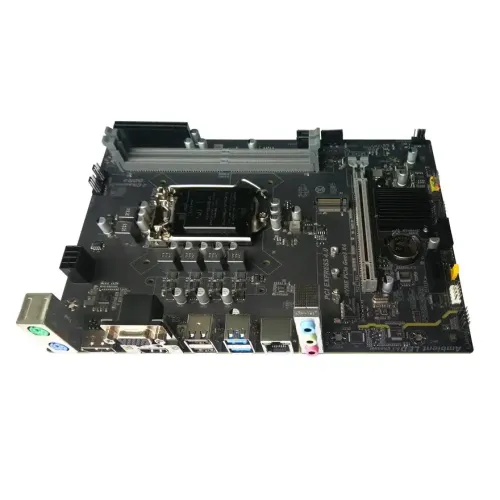

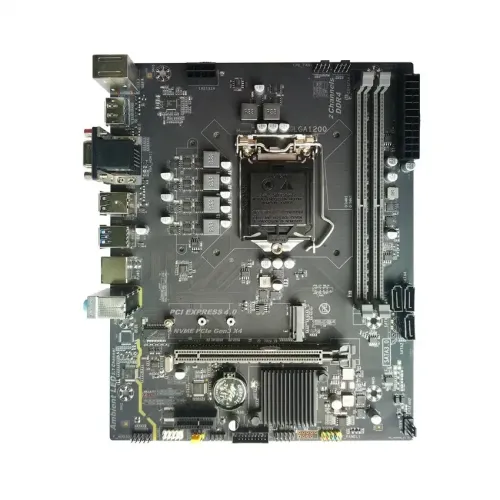

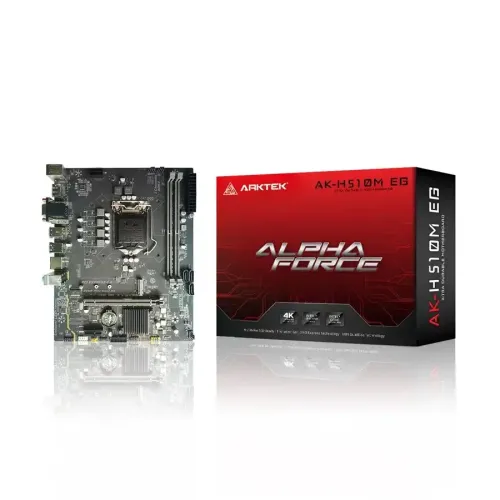

The ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard is designed to support both 11th and 10th generation Comet Lake-S processors, including Core i9, Core i7, Core i5, Core i3, Pentium, and Celeron series, for the LGA 1200 socket. It features the Intel H510 chipset and integrated Intel HD Graphics support. The motherboard supports dual-channel DDR4 memory with speeds of 2133/2400/2800MHz and supports XMP overclocking. It offers two memory slots and onboard Realtek 100/1000 Mbps LAN. The audio features include a 3.5mm port, 5.1 channel support, and LED audio support. The motherboard provides a range of I/O ports, including PS/2 mouse and keyboard ports, DP and HDMI ports, USB 2.0 and USB 3.0 ports, RJ45 LAN port, and audio jacks. Internal connectors consist of USB headers supporting both USB 2.0 and USB 3.0. Storage options include three SATA 3.0 6Gb/s ports and an M.2 slot supporting PCI-E 3.0 X4 NVME SSDs. With a micro-ATX form factor measuring 22cm X 17 cm, the AK-H510M EG is compact and suitable for smaller PC builds. It includes six mounting holes for secure installation and is compatible with Windows 7, 8, 8.1, and 10 (x64) operating systems.
In Bangladesh, you can get original ARKTEK AK-H510M EG 10th & 11th Gen Micro-ATX Motherboard From Star Tech. We have a large collection of latest ARKTEK Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ARKTEK AK-H510M EG Motherboard comes with 2 years warranty.
The latest price of ARKTEK AK-H510M EG Motherboard in Bangladesh is 8,900৳. You can buy the ARKTEK AK-H510M EG Motherboard at best price from our website or visit any of our showrooms.
