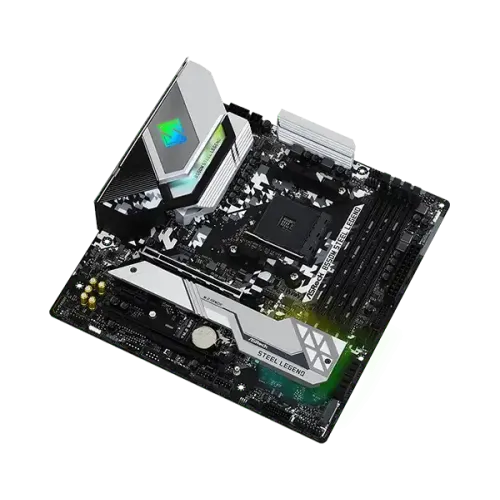

ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard
  • ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard
  • ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard
  • ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard
  • ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard
Product After image | Nagad cashback

ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard

Price 20,400৳
Regular Price 22,190৳
Status In Stock
Product Code 30952
Brand ASRock

Key Features

  • Model: B550M Steel Legend
  • Supported CPU: Ryzen 3000, 3000 G, 4000 G, 5000 and 5000 G-Series Processors
  • Supported RAM: 4 x DDR4, Max 128GB 4733+ (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Dragon 2.5G LAN
  • View More Info
stars 220 Star Points

Payment Options

Specification

Basic Information
Supported CPUSupports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
Digi Power design
10 Power Phase design
ChipsetAMD B550
BIOS256Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Form FactorMicro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
2oz Copper PCB
Audio7.1 CH HD Audio with Content Protection (Realtek ALC1220/ALC1200 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
PCB Isolate Shielding
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
Nahimic Audio
Expansion Slots
PCIAMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs (Picasso)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*

- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
TypeDDR4
Slots 4 x DIMM Slots
Supported MemoryAMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
Supports Extreme Memory Profile (XMP) memory modules
15μ Gold Contact in DIMM Slots
Maximum Memory128GB
Graphics
Graphics- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports***
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft® PlayReady
Max Shared MemoryShared memory default 2GB. Max Shared memory supports up to 16GB
Connector & Ports
HDMI1 x HDMI Port
Display Port (s) 1 x DisplayPort 1.2
USB (s)1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Supported Storage6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)
1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
AudioHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports1 x Power LED and Speaker Header
2 x RGB LED Headers
2 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )1 x SPI TPM Header
Others
Special Features ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Bundled SoftwareSoftware
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
Warranty Information
Manufacturing Warranty03 years

Description

ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard

The ASRock B550M Steel Legend Motherboard is a robust and versatile motherboard that caters to the needs of AMD AM4 Socket Ryzen processors, including the Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors, providing exceptional performance for gaming and productivity tasks. This motherboard ensures effective power delivery for improved stability and overclocking capabilities thanks to its 10 Power Phase Design and Dr. MOS technology. It supports DDR4 memory at rates of up to 4733+MHz (OC), allowing for quick data processing and multitasking. The motherboard offers 1 PCIe 4.0 x16 slot, 1 PCIe 3.0 x16 slot, and 1 PCIe 3.0 x1 slot, along with 1 M.2 Key E slot for WiFi connectivity. Multiple graphics output choices include HDMI and DisplayPort, making it compatible with a wide range of displays. AMD CrossFireX support allows for multi-GPU configurations. The ASRock B550M Steel Legend boasts impressive audio capabilities with its 7.1 CH HD Audio featuring the Realtek ALC1220/ALC1200 Audio Codec and Nahimic Audio, delivering immersive sound quality for gaming and media consumption. It provides 6 SATA3 ports, 1 Hyper M.2 (PCIe Gen4 x4), and 1 M.2 (PCIe Gen3 x2 & SATA3), ensuring fast and versatile storage options. Connectivity options include 2 USB 3.2 Gen2 ports at the rear (Type A+C) and 8 USB

Buy ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard from Star Tech

In Bangladesh, you can get original ASRock B550M Steel Legend AMD AM4 Micro-ATX Motherboard From Star Tech. We have a large collection of latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASRock B550M Steel Legend Motherboard comes with 3 years warranty.

What is the price of ASRock B550M Steel Legend Motherboard in Bangladesh?

The latest price of ASRock B550M Steel Legend Motherboard in Bangladesh is 20,400৳. You can buy the ASRock B550M Steel Legend Motherboard at best price from our website or visit any of our showrooms.
