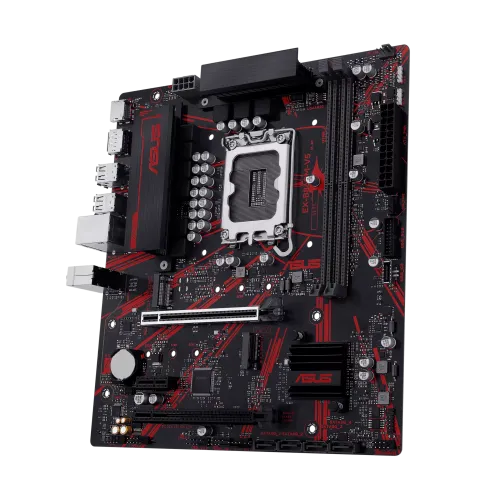

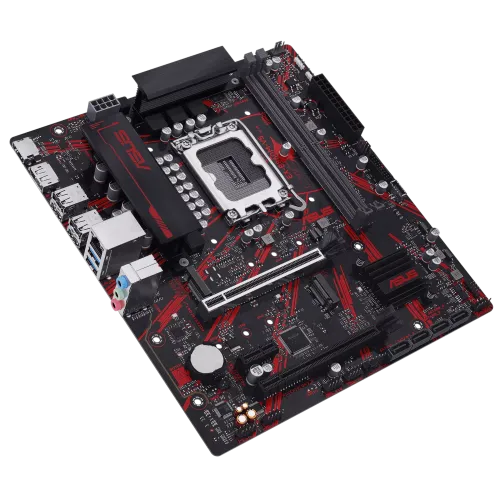

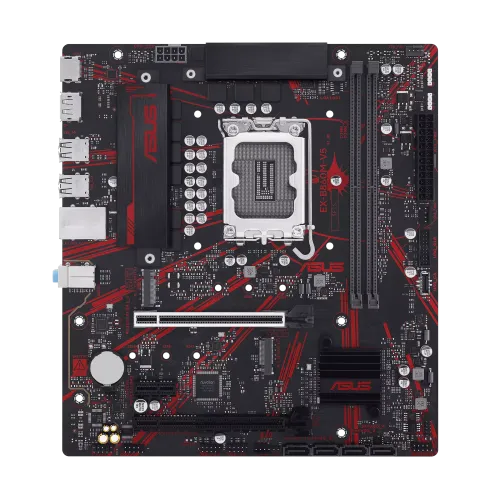

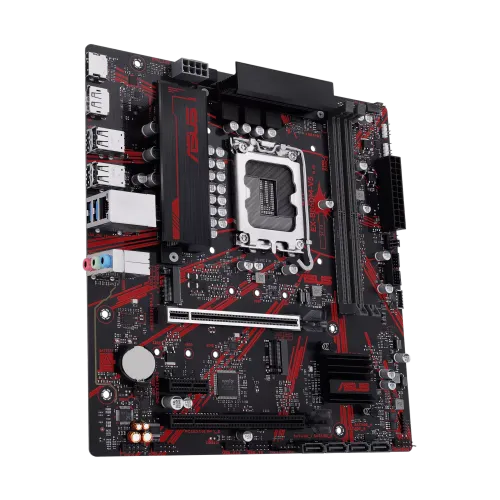

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
  • Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
  • Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
  • Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
  • Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

Price To be announced
Status Up Coming
Product Code 41117
Brand Asus

Key Features

  • Model: EX-B860M-V5
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 2x DDR5, Max 128GB, 8800+MT/s (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x USB (20Gbps)
  • Features: 2x M.2, Realtek 2.5Gb LAN
  • View More Info
Up Coming

Specification

Basic Information
Supported CPUSupports Intel Core Ultra Processors (Series 2), LGA1851 Socket
ChipsetINTEL B860
BIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factormicro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCIIntel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
M.2 Socket2x M.2
Memory
TypeDDR5
Slots2
Supported Memory2 x DIMM slots, max. 128GB, DDR5
Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum MemoryMaximum Memory Capacity 128GB
Graphics
Graphics1 x DisplayPort
1 x HDMI™ port
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI1x HDMI 2.1
Display Port (s)1x DisplayPort 1.4a

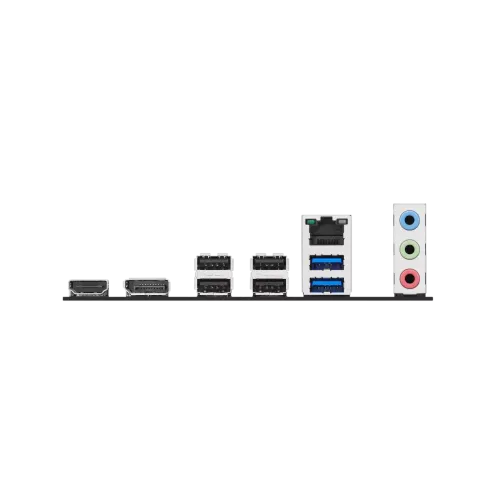

USB (s)Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s)1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAIDSATA RAID 0/1/5/10
Audio3 x Audio jacks
Internal I/O PortsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Warranty Information
Manufacturing Warranty3 Year warranty

Description

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard

The Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard is a powerful computing powerhouse that supports Intel Core Ultra Processors Series 2 thanks to its superior Intel B860 chipset and LGA 1851 socket compatibility. This Asus EX-B860M-V5 Motherboard features two DIMM slots and supports up to 128GB of DDR5 RAM at speeds of 8800+MT/s OC. It has Intel XMP and ASUS Enhanced Memory Profile III AEMPIII for easy overclocking, making it ideal for gamers and pros. Visual performance is equally impressive, with DisplayPort 1.4 and HDMI 2.1 outputs that support crisp 4K at 60Hz resolution. Expansion is seamless with one PCIe 4.0 x16 slot, one PCIe 4.0 x16 slot x4 mode, and one PCIe 4.0 x1 slot for graphics cards and additional peripherals. Storage is future-proof, offering two M.2 slots one supporting PCIe 5.0 x4 speeds alongside four SATA 6Gb/s ports with Intel Rapid Storage Technology and RAID support. Network connectivity shines with Realtek 2.5Gb Ethernet and ASUS LANGuard for added protection. This Asus EX-B860M-V5 Micro-ATX Motherboard provides a rich selection of USB ports, including a front-panel USB Type-C connector. Audio is immersive, powered by the Realtek 7.1 Surround Sound High Definition Audio CODEC, enhanced with premium audio capacitors and dedicated PCB layers. Cooling is optimized through a VRM heatsink design and multiple 4-pin fan headers. The Asus EX-B860M-V5 is safeguarded by ASUS 5X PROTECTION III, ensuring long-term durability with DIGI+ VRM, SafeSlot Core+, and a stainless-steel back I/O. Additional conveniences include Q-Design for streamlined installation, Lightning Boot for faster startups, and a luminous anti-moisture coating for reliability in demanding environments. This compact yet powerful Asus Motherboard measures 24.4 cm x 22.2 cm, making it ideal for space-conscious setups without compromising performance. Whether for gaming, content creation, or professional workflows, the Asus EX-B860M-V5 Motherboard delivers outstanding performance, stability, and flexibility.

Buy Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard from Star Tech

In Bangladesh, you can get original Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard From Star Tech. We have a large collection of latest Asus Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard comes with a 3-years Warranty.

What is the price of Asus EX-B860M-V5 Micro-ATX Motherboard in Bangladesh?

The latest price of Asus EX-B860M-V5 Micro-ATX Motherboard in Bangladesh is 0৳. You can buy the Asus EX-B860M-V5 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
