ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
  • ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
  • ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
  • ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard
Product After image | Nagad cashback

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

Price 10,400৳10,700৳
Regular Price 11,550৳
Status In Stock
Product Code 36684
Brand Asus

Key Features

  • Model: PRIME H510M-K R2.0
  • Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
  • Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
  • Graphics Output: 1x HDMI port, 1x VGA port
  • Features: 1 x Realtek 1Gb Ethernet
  • View More Info

Payment Options

Specification

Basic Information
Supported CPUIntel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
ChipsetIntel H470 Chipset
BIOS128 Mb Flash ROM, UEFI AMI BIOS
Form Factormicro-ATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
Expansion Slots
PCIIntel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H470 Chipset
1 x PCIe 3.0 x1 slot
M.2 SocketTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
TypeDDR4
Slots2 x DIMM
Supported MemoryDDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Maximum MemoryMax. 64GB
Graphics
GraphicsOnly Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

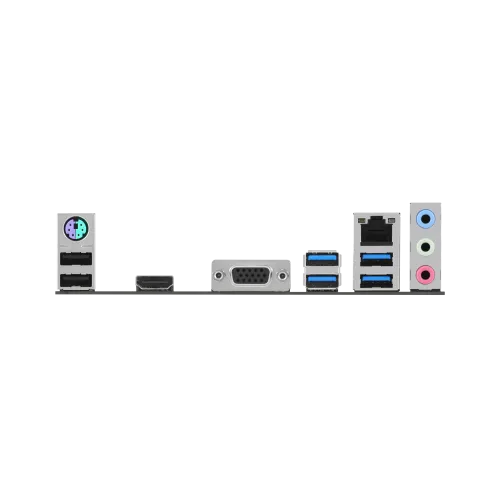

Connector & Ports
HDMI1x HDMI 1.4
VGA (s)1x VGA port
USB (s)Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)1 x Realtek 1Gb Ethernet port
Supported StorageTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H470 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Internal I/O PortsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header
Warranty Information
Manufacturing Warranty3 years

Description

ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard

The ASUS PRIME H510M-K R2.0 is a versatile micro-ATX motherboard designed for compatibility with both 10th and 11th Gen Intel processors through its LGA 1200 socket. Featuring an Intel H510 chipset, this motherboard supports ultrafast connectivity with PCIe 4.0, a 32Gbps M.2 slot for rapid storage, 1 Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A ports for quick data transfer. For cooling, it includes a PCH heatsink and FAN Xpert technology to ensure optimal thermal management. Additionally, the motherboard offers 5X Protection III, a suite of hardware safeguards that provides overvoltage, short-circuit, and other protective features for enhanced durability and stability. This combination of features makes the ASUS PRIME H510M-K R2.0 a reliable and efficient choice for building a high-performance computing system.

Buy ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard from Star Tech

In Bangladesh, you can get original ASUS PRIME H510M-K R2.0 10th and 11th Gen Micro-ATX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS PRIME H510M-K R2.0 Motherboard comes with 3 years warranty.

What is the price of ASUS PRIME H510M-K R2.0 Motherboard in Bangladesh?

The latest price of ASUS PRIME H510M-K R2.0 Motherboard in Bangladesh is 10,400৳. You can buy the ASUS PRIME H510M-K R2.0 Motherboard at best price from our website or visit any of our showrooms.
