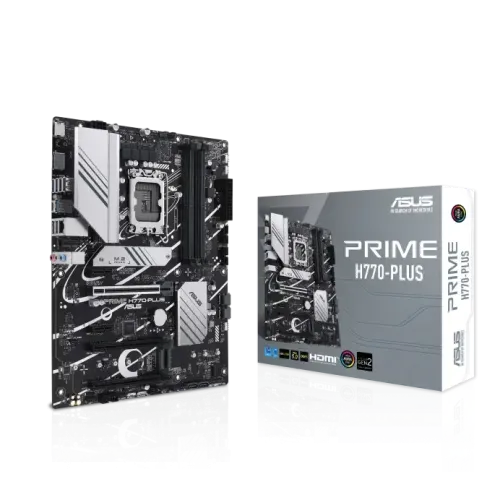

ASUS PRIME H770-PLUS ATX Motherboard
  • ASUS PRIME H770-PLUS ATX Motherboard
  • ASUS PRIME H770-PLUS ATX Motherboard
  • ASUS PRIME H770-PLUS ATX Motherboard
mymensingh outlet

ASUS PRIME H770-PLUS ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 32588
Brand Asus

Key Features

  • Model: PRIME H770-PLUS
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUIntel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel H770 Chipset
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCIIntel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel H770 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
2 x PCIe 3.0 x1 slots
M.2 Socket 3 x M.2
Memory
TypeDDR5
Slots4 x DIMM
Supported Memory7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Maximum MemoryMax. 192GB
Graphics
Graphics x DisplayPort**
1 x HDMI® port***
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI1 x HDMI
Display Port (s)1 x DisplayPort
USB (s)Rear USB (Total 8 ports)
3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s)1 x Realtek 2.5Gb Ethernet
Wireless Communication moduleVertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
Supported StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio3 x Audio jacks

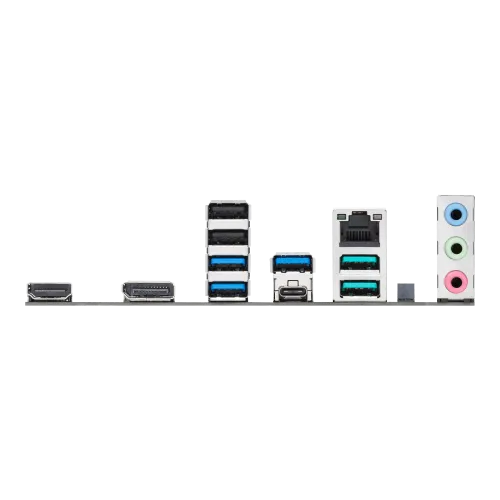

Internal I/O PortsBack Panel I/O Ports
3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C)
3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB headers
- Addressable Gen 2 headers
Bundled SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty3 years

Description

ASUS PRIME H770-PLUS ATX Motherboard

The ASUS PRIME H770-PLUS ATX motherboard stands out as a versatile and powerful alternative for enthusiasts looking for a feature-rich base for their desktop computers. This motherboard is precisely designed to accommodate 14th, 13th, and 12th-generation Intel CPUs via the LGA1700 socket architecture. This versatility allows customers to select from a wide range of CPUs, assuring compatibility with Intel's most recent and prospective CPU alternatives. The PRIME H770-PLUS's memory capacities are a highlight, with four DIMM slots with a maximum capacity of 128GB. Notably, the motherboard is geared for DDR5 memory modules, with overclocked rates reaching 7000MHz. This architecture guarantees that users may fully utilize their system RAM for smooth multitasking, content production, and resource-intensive tasks. With 1 x DisplayPort and 1 x HDMI connector for graphics output, the motherboard provides a diverse option. This adaptability enables users to connect high-resolution monitors, resulting in an immersive visual experience for gaming, content production, and media consumption. The PRIME H770-PLUS excels at networking, including a Realtek 2.5Gb Ethernet interface. This not only assures fast access for online gaming but also a steady and responsive network experience for bandwidth-intensive operations like streaming and huge file transfers. In addition to its fundamental capabilities, the motherboard has a number of features designed to improve the overall user experience. This incorporates superior power delivery systems to provide consistent performance under demanding workloads, PCIe ports for accepting expansion cards like graphics cards and high-speed storage solutions, and an easy-to-use BIOS interface for system customization and tweaking. The ASUS PRIME H770-PLUS ATX motherboard is an excellent choice for developing a high-performance desktop system. This motherboard is intended to suit the different demands of customers involved in gaming, content production, and other demanding computer operations, from its broad CPU compatibility to its powerful memory support and variable graphics output. The addition of sophisticated functionality makes it a dependable and future-proof alternative for both enthusiasts and power users.

Buy ASUS PRIME H770-PLUS ATX Motherboard from Star Tech

In Bangladesh, you can get original ASUS PRIME H770-PLUS 13th & 12th Gen ATX Motherboard From Star Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The ASUS PRIME H770-PLUS Motherboard comes with 3 years warranty.

What is the price of ASUS PRIME H770-PLUS Motherboard in Bangladesh?

The latest price of ASUS PRIME H770-PLUS Motherboard in Bangladesh is 27,500৳. You can buy the ASUS PRIME H770-PLUS Motherboard at best price from our website or visit any of our showrooms.
