| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 35589 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X670 | |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Audio CODEC - Supports: Jack-detection, - Supports up to 24-Bit/192 kHz playback Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s) When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only. AMD Ryzen 8700/8600 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen 8500/8300 Series Desktop Processors 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) AMD X670 Chipset 1 x PCIe 4.0 x1 slots |
|
| M.2 Socket | Supports 5 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x HDMI port 2 xUSB4 ports support USB Type-C display outputs |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Rear USB (Total 12 ports) 2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 8000 / 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 - AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode M.2_2 slot (Key M), type 2242/2260/2280 - Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x2 mode PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - Only AMD Ryzen 7000 Series Desktop Processors support PCIe 5.0 x4 mode - AMD Ryzen 8000 Series Desktop Processors support PCIe 4.0 x4 mode |
|
| RAID | AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Audio | 5 x Gold-plated audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pinPCIe Power connector Storage related 4 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration Mode Switch 1 x Aura RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|
| Others | ||
| Special Features | Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS To support 60W, please install the power cable to 6-pin PCIe power connector or can only support 27W |
|
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - BullGuard or equivalent internet security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving - Polymo Lighting - Two-Way AI Noise Cancellation AI Suite 3 TPU DIGI+ Power Control Turbo app PC Cleaner MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

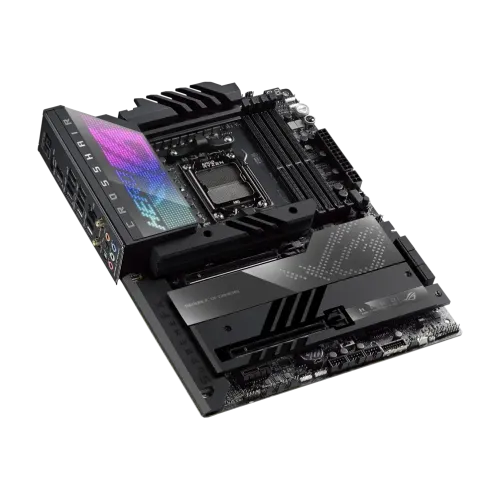

The Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard has been painstakingly designed to serve as the foundation of your dream gaming setup. With its innovative design, this motherboard guarantees unmatched performance and compatibility with the newest Ryzen 8000 and 7000 Series Processors for Socket AM5. You can expect lightning-fast responsiveness and smooth multitasking with up to 192GB of RAM, clocked at frequencies of up to 8000MHz with overclocking, spread across four DDR5 DIMM slots. The graphics output of the Asus ROG CROSSHAIR X670E HERO is impressive. It provides flexible connecting choices for your display configuration with one HDMI connector and two USB ports, guaranteeing clear graphics and fluid gaming. WThis motherboard provides the graphical performance you want, whether you're playing the newest AAA games or competing in fierce esports tournaments. The Asus ROG CROSSHAIR X670E HERO is designed for networking proficiency and connection as well as raw power. You may enjoy lightning-fast network speeds for lag-free online gaming, flawless streaming, and lightning-fast downloads thanks to its 1x 2.5Gb Ethernet and Wi-Fi 6E connectivity. Thanks to the sophisticated networking capabilities on this motherboard, you can wave goodbye to annoying latency and welcome to uninterrupted gaming sessions. Apart from its remarkable performance and connection, the Asus ROG CROSSHAIR X670E HERO has an array of gaming-specific features that are intended to optimize your gaming encounter. This motherboard has everything you need, including sophisticated cooling options and RGB lights that can be customized. This Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard is the ideal starting point for any kind of gaming system, be it competitive or casual, with the aim of pushing the boundaries of performance. With its superior performance, networking, and features designed just for gaming, it's ready to elevate your gaming experience.
In Bangladesh, you can get original Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard From Star Tech. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The Asus ROG CROSSHAIR X670E HERO DDR5 AMD AM5 ATX Motherboard comes with 3 years of warranty.
The latest price of Asus ROG CROSSHAIR X670E HERO DDR5 AM5 ATX Motherboard in Bangladesh is 98,000৳. You can buy the Asus ROG CROSSHAIR X670E HERO DDR5 AM5 ATX Motherboard at best price from our website or visit any of our showrooms.
Have question about this product? Get specific details about this product from expert.
A: Sir, The Asus ROG CROSSHAIR X670E HERO Motherboard supports AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Processors.
Get specific details about this product from customers who own it.
