| Price | To be announced |
| Status | Discontinued |
| Product Code | 8534 |
| Brand | Asus |
| Basic Information | ||
| Supported CPU | Intel® Socket 1151 for 8th Generation Core™ Processors | |
| Chipset | Intel B360 | |
| BIOS | 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile. |
|
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) | |
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
|
| Maximum Memory | 32GB | |
| Graphics | ||
| Graphics | Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz |
|
| Max Shared Memory | Maximum shared memory of 1024 MB (for iGPU exclusively) | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Intel® B360 Chipset : *6 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) Intel® B360 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A + USB Type-CTM, 2 at mid-board) Intel® B360 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board) |
|
| LAN Port (s) | Intel® I219V Anti-surge LANGuard ROG GameFirst Technology |
|
| Supported Storage | Intel® B360 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1 4 x SATA 6Gb/s port(s) Intel® Optane™ Memory Ready *2 |
|
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *5 Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link |
|
| Internal I/O Ports | 1 x Aura Addressable Strip Header(s) 1 x AAFP connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Thermal sensor connector |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years | |

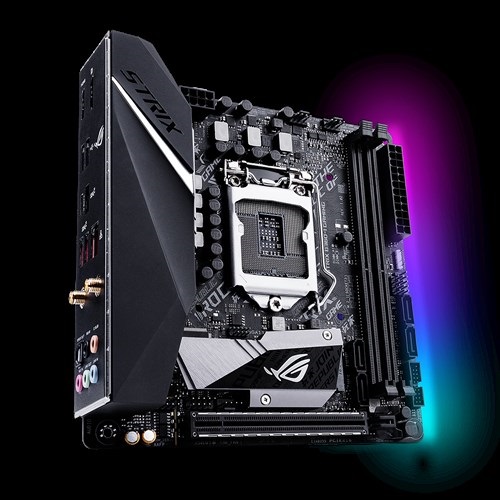

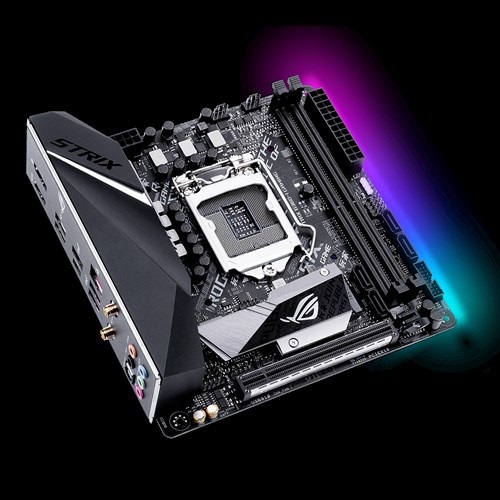

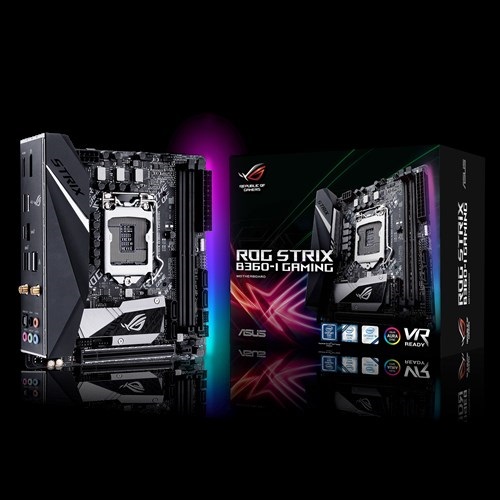

Asus ROG STRIX B360-I GAMING mini-ITX 8th gen Wi-Fi Aura Sync RGB LED lighting motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This pre-mounted I/O shield board has dual channel DDR4 maximum 32GB memory and it has the capability of fast dual M.2 Socket 3 and USB 3.1 Gen 2 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 4096 x 2160 @ 24 Hz for HDMI and 4096 x 2304 @ 60 Hz for DisplayPort. This Intel Optane memory ready board has 1 x PCIe slots, Intel® I219V, ROG GameFirst Technology, TUF LANGuard & Anti-surge LANGuard and ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A.
Asus ROG STRIX B360-I GAMING mainboard with Intel B360 chipset is a great choice for your gaming desktop setup and have the best price in Chattagram, Dhaka, Rangpur, Khulna & Sylhet. Order your gaming components from Star Tech online shop and have the delivery at any place in Bangladesh.
