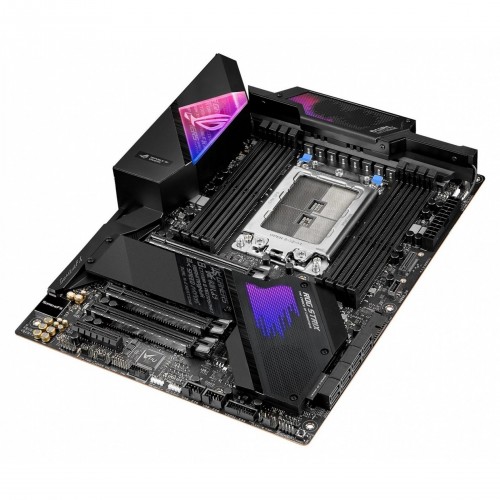

Asus ROG Strix TRX40-XE Gaming AMD Motherboard
  • Asus ROG Strix TRX40-XE Gaming AMD Motherboard
  • Asus ROG Strix TRX40-XE Gaming AMD Motherboard

Asus ROG Strix TRX40-XE Gaming AMD Motherboard

Price To be announced
Status Out Of Stock
Product Code 15049
Brand Asus

Key Features

  • Model: Asus ROG Strix TRX40-XE
  • For the latest 3rd Gen AMD Ryzen Threadripper series processors
  • Comprehensive cooling
  • Best gaming connectivity
  • High fidelity audio with SupremeFX S1220
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPUBuild in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors
Supports CPU up to 64 cores
ChipsetAMD TRX40
BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio- SupremeFX Shielding Technology
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
Expansion Slots
PCI3rd Gen AMD RyzenThreadripper Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 x4
Memory
TypeQuad Channel Memory Architecture
Slots8 x DIMM slots
Supported Memory4666(O.C.)/4600(O.C)/4400(O.C)/ 4333(O.C.)/4266(O.C.)/ 4133(O.C.)/ 3800(O.C.)/ 3733(O.C.)/3466(O.C.)/3400(O.C.)/ 3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum Memory256GB, DDR4
Connector & Ports
USB (s)3rd Gen AMD Ryzen Threadripper Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
AMD TRX40 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
8 x USB 2.0 port(s)
ASMedia USB 3.2 Gen 1 controller :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
LAN Port (s)IRealtek RTL8125-CG 2.5G LAN
Intel I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst V Technology
Supported Storage3rd Gen AMD Ryzen Threadripper Series Desktop processors :
2 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset :
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
AudioROG SupremeFX8-Channel High Definition Audio CODEC S1220
- Dual OP Amplifiers
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality120dBSNR stereo playback output108dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Internal I/O Ports2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x USB 3.2 Gen 2 front panel connector
1 x Speaker connector
1 x Chipset Fan Header
1 x VRM_HS_FAN Header
TPM (Trusted Platform Module )1 x TPM header
Others
Special Features Wireless Data Network:
Intel Wi-Fi 6 AX200
Wi-Fi 802.11 ax, Bluetooth 5.0
Supports dual band frequency 2.4/5 GHz
Supports 2x2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
Gamer´s Guardian:
- DRAM Overcurrent Protection
- Highly Durable components
- Digi+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
LiveDash OLED 1.3”
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS FlashBack™
- AI Suite 3
- Ai Charger
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- BIOS FlashBack™ Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Bundled SoftwareROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Overwolf
Warranty Information
Manufacturing Warranty03 Years Warranty

Description

Asus ROG Strix TRX40-XE Gaming AMD Motherboard

ROG Strix TRX40-XE Gaming provides comprehensive cooling options and robust power delivery to fuel CPUs with more cores, plus faster storage and memory in your build for top-tier gaming performance. TheROG Strix TRX40-XE Gaming is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories. A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix TRX40-XE Gaming wonderfully easy. Addtionally, this Gaming motherboard offers firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, user can configure their ROG Strix gaming build to perform the way they want.The AMD TRX40 chipset delivers outstanding overclocking capabilities for the latest AMD Socket sTRX4 3rd Gen Ryzen™ Threadripper™ series processors and PCIe 4.0 support, 10 Gbps USB 3.2 Gen 2 ports, and eight SATA 6 Gbps ports for faster data retrieval. ROG Strix TRX40-XE Gaming motherboard supports the latest 3rd Gen AMD Ryzen Threadripper series processors that boast up to 64 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance. This exclusive AsusROG STRIX TRX40-XE comes with 03 years of warranty.

What is the price of Asus ROG Strix TRX40-XE Gaming Motherboard in Bangladesh?

The latest price of Asus ROG Strix TRX40-XE Gaming Motherboard in Bangladesh is 55,300৳. You can buy the Asus ROG Strix TRX40-XE Gaming Motherboard at best price from our website or visit any of our showrooms.
