| Price | 11,000৳ |
| Regular Price | 12,650৳ |
| Status | In Stock |
| Product Code | 28533 |
| Brand | BIOSTAR |
| Basic Information | ||
| Supported CPU | Socket AM4 support AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
|
| Chipset | AMD B550 | |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) | |
| Audio | Realtek ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000/3000 Series Processors 1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 Slot (x1 mode) 1 x PCIe 3.0 x16 Slot (x1 mode) 1 x PCIe 3.0 x16 Slot (x1 mode) |
|
| M.2 Socket | 2 x M.2 sockets | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Cezanne APUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200/4533(OC) |
|
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | By CPU model Supports DX12 Supports HDCP |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | 4 x USB 3.2 (Gen1) Port 2 x USB 2.0 Port 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
|
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability |
|
| Wireless Communication module | Supports WiFi 6 module | |
| Supported Storage | Total supports 8 x SATA III (6Gb/s) ports and 2 x M.2 sockets 4 x SATA III (6Gb/s) Support AHCI & RAID 0, 1, 5, 10 only for SATA1 ~ SATA4 ports* 2 x M.2 slots (Key M) 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA) (From AMD Processors) Supports PCIe 4.0/ 3.0x4** - NVMe/ AHCI Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA) (From AMD B550 Chipset) Supports PCIe 3.0x4 - NVMe/ AHCI Supports SATA 6Gb/s Supports 2280 storage devices |
|
| Audio | 3 x Audio Jack | |
| Internal I/O Ports | 8 x SATA III (6.0Gb/s) Connector 1 x M.2 (E Key) Socket: Supports 2230 type Wi-Fi & Bluetooth module 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 2 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x S/PDIF out Connector 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x Debug LED |
|
| Others | ||
| Special Features | Supports 100% Solid capacitor BIO-FLASHER A.I FAN PCIe M.2 32Gb/s |
|
| Bundled Software | BullGuard | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

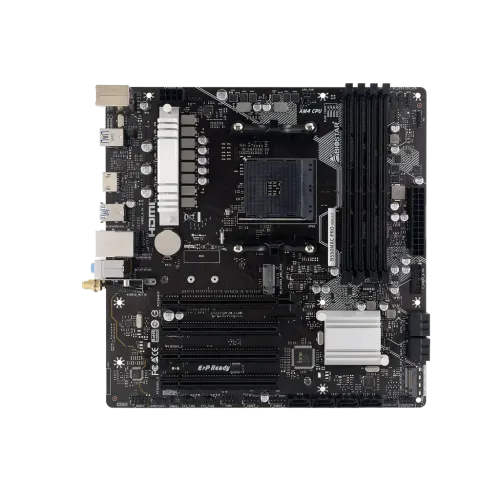

The BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed to support the latest AMD processors. It is compatible with both the AMD Ryzen 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer / Cezanne) processors, ensuring a powerful and efficient computing experience. The motherboard features the AMD B550 single-chip architecture, which provides reliable and stable performance. With support for up to 4-DIMM DDR4 memory slots, it can accommodate a maximum capacity of 128GB. The supported memory speeds range from DDR4-3200 to DDR4-4933+(OC), allowing for overclocking capabilities. The motherboard supports PCIe M.2 4.0, providing a blazing-fast data transfer rate of 64Gb/s. This ensures that you can take full advantage of high-speed storage devices, such as NVMe SSDs, for faster boot times and quick file transfers. The BIOSTAR B550MXC PRO also offers HDMI 4K resolution support, enabling you to connect your computer to a 4K display for crisp and vibrant visuals. Additionally, it includes a WiFi 6 module, which offers faster and more reliable wireless connectivity, allowing for seamless online gaming, streaming, and downloading. The BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard is a feature-packed motherboard that provides excellent compatibility, performance, and expandability for gamers, content creators, and enthusiasts who require a reliable and high-performance platform for their AMD Ryzen processors.
In Bangladesh, you can get original BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard From Star Tech. We have a large collection of latest BIOSTAR Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard comes with 3 years warranty.
The latest price of BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh is 11,000৳. You can buy the BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
Have question about this product? Get specific details about this product from expert.
Get specific details about this product from customers who own it.
Highly Recommended. BIOSTAR B550MXC PRO DDR4 AMD AM4 Micro ATX Motherboard is giving excellent performance.
