| Price | 17,000৳ |
| Regular Price | 18,700৳ |
| Status | In Stock |
| Product Code | 38547 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Display Port (s) | 1 x DisplayPort | |
| D-Sub (s) | 1 x D-Sub port | |
| USB (s) | Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years Warranty | |

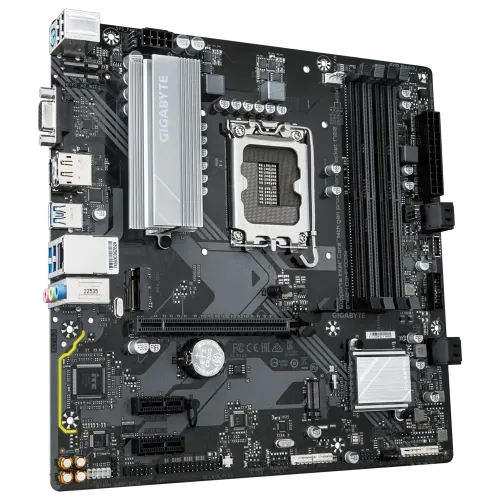

The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard is a feature-packed motherboard designed to support Intel’s 12th, 13th, and 14th Generation Core processors, making it an ideal choice for users who want both versatility and performance. This motherboard is built to handle demanding applications, offering a Hybrid 4+1+1 Phases Digital VRM Solution for stable power delivery, enabling smooth multitasking and excellent performance in gaming, content creation, or other heavy workloads. With Dual Channel DDR4 support, the GIGABYTE B760M D3HP provides four DIMM slots compatible with XMP memory modules, allowing for flexible memory configurations and enhanced system responsiveness. Storage performance is optimized through two PCIe 4.0 x4 M.2 connectors, providing ultra-fast data transfer rates ideal for users who rely on NVMe SSDs for quick file access and fast system boot times. On the networking side, including Gigabit Ethernet (GbE LAN) ensures a stable and high-speed internet connection, catering to both online gaming and streaming. Connectivity options on this motherboard are extensive. It includes front-panel USB-C support with 5Gb/s speed, along with HDMI, DisplayPort, and D-Sub video outputs to accommodate various monitors and peripherals. The Smart Fan 6 technology integrated into the motherboard provides advanced cooling options, with multiple temperature sensors and hybrid fan headers featuring FAN STOP, ensuring your system remains cool and quiet during intense tasks. Updating the BIOS is also made simple with the Q-Flash Plus feature, which allows users to perform BIOS updates without needing to install the CPU, memory, or graphics card. This functionality makes it especially convenient for builders who want to ensure compatibility with the latest processors from Intel. The GIGABYTE B760M D3HP DDR4 Micro ATX Motherboard combines high-speed storage, reliable power delivery, extensive connectivity, and easy BIOS management, providing an exceptional foundation for modern PC builds. Whether you’re building a high-performance workstation or a gaming rig, this motherboard offers the flexibility and support you need for a future-proof setup.
In Bangladesh, you can get the original GIGABYTE B760M E DDR5 Micro ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B760M E DDR5 Micro ATX Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M D3HP DDR4 Motherboard in Bangladesh is 17,000৳. You can buy the GIGABYTE B760M D3HP DDR4 Motherboard at best price from our website or visit any of our showrooms.
