| Price | 17,800৳ |
| Regular Price | 19,750৳ |
| Status | In Stock |
| Product Code | 26587 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

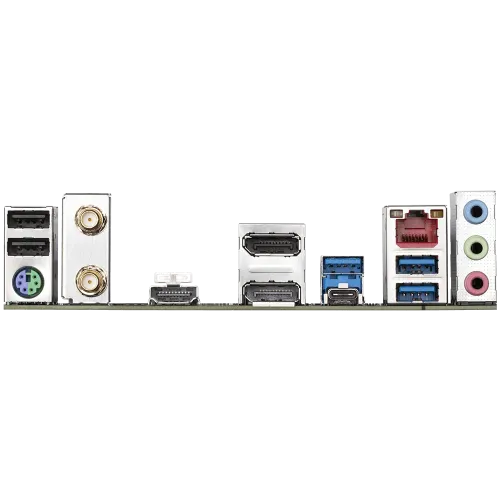

The GIGABYTE B760M DS3H AX DDR4 is a mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This 14th Gen Motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0x16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboard's rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed.
In Bangladesh, you can get the original GIGABYTE B760M DS3H AX DDR4 mATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B760M DS3H AX DDR4 14th Gen Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M DS3H AX DDR4 mATX Motherboard in Bangladesh is 17,800৳. You can buy the GIGABYTE B760M DS3H AX DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
