| Price | 14,000৳ |
| Regular Price | 15,740৳ |
| Status | In Stock |
| Product Code | 29895 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 64GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| D-Sub (s) | 1x D-Sub | |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

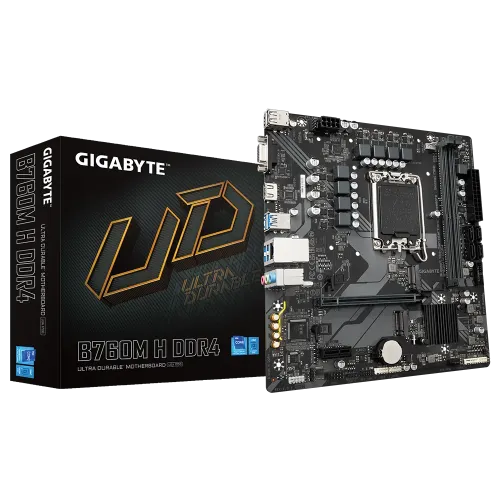

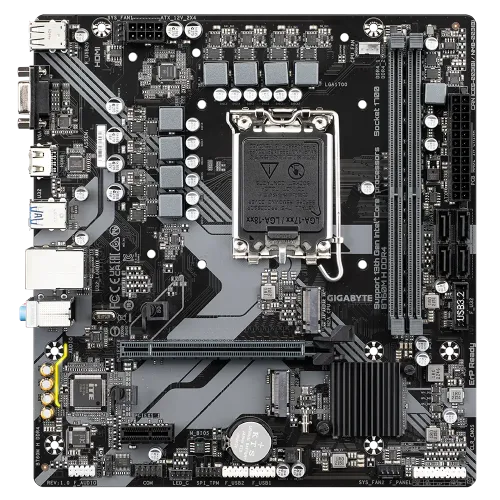

The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 14th, 13th, and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports the XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The 14th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications.
In Bangladesh, you can get the original GIGABYTE B760M H DDR4 mATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE B760M H DDR4 14th Gen Motherboard comes with 3 years warranty.
The latest price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh is 14,000৳. You can buy the GIGABYTE B760M H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
