| Price | 33,600৳ |
| Regular Price | 37,400৳ |
| Status | In Stock |
| Product Code | 40918 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors L3 cache |
|
| Chipset | Intel B860 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules | |
| Maximum Memory | Up to 256 GB (64 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB headers - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 1 x front panel audio header 3 x audio jacks |
|

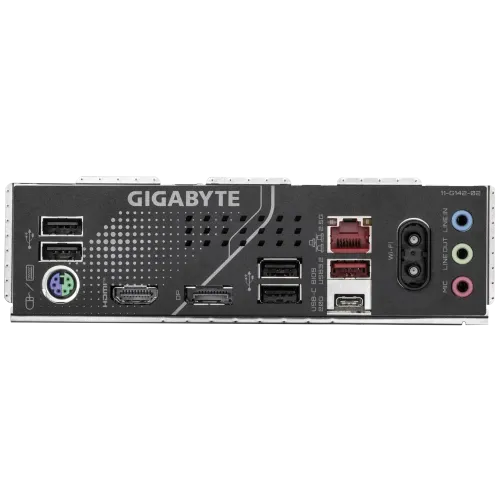

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |
The GIGABYTE B860 EAGLE WIFI6E ATX Motherboard is a high-performance, feature-rich motherboard designed to support Intel Core Ultra Processors, delivering outstanding efficiency and power. Built on the Intel B860 Express Chipset, this GIGABYTE B860 EAGLE WIFI6E ATX Motherboard offers exceptional memory support, accommodating up to 256GB of DDR5 RAM with speeds reaching 9066 MT/s OC, ensuring ultra-fast performance for gaming and content creation. For graphics, the GIGABYTE B860 EAGLE WIFI6E Motherboard supports Intel HD Graphics, providing HDMI 2.1 output with resolutions up to 4096x2160 at 60Hz and DisplayPort 2.1 with 3840x2160 at 144Hz, delivering stunning visuals. This GIGABYTE B860 EAGLE WIFI6E features a PCIe 5.0 x16 slot, perfect for high-end GPUs or NVMe SSDs, alongside two PCIe 4.0 x1 slots for additional expansion. Storage is optimized with three M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs and four SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10 configurations. The GIGABYTE Motherboard ensures immersive audio with Realtek High Definition Audio, supporting 7.1-channel surround sound and S/PDIF Out for crystal-clear sound quality. For connectivity, the GIGABYTE B860 EAGLE WIFI6E Motherboard integrates Realtek 2.5GbE LAN for ultra-fast networking, Intel Wi-Fi 6E, and Bluetooth 5.3, ensuring seamless wireless communication. The rear I/O panel includes USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, and multiple USB 2.0 ports, offering extensive connectivity for peripherals. Additionally, this GIGABYTE B860 EAGLE WIFI6E ATX Motherboard features customizable RGB lighting with addressable Gen2 LED headers, enhanced cooling with multiple fan and water pump headers, and GIGABYTE-exclusive features like Q-Flash Plus for effortless BIOS updates and Smart Backup for data security. The GIGABYTE B860 EAGLE WIFI6E ATX Motherboard is a top-tier choice for gamers, enthusiasts, and professionals looking for a reliable, high-performance, and future-ready GIGABYTE Motherboard that delivers cutting-edge technology, superior connectivity, and robust durability.
In Bangladesh, you can get original GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard From Star Tech. We have a large collection of latest GIGABYTE Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The GIGABYTE B860 EAGLE WIFI6E LGA1851 ATX Motherboard comes with a 3-year Warranty.
The latest price of GIGABYTE B860 EAGLE WIFI6E Motherboard in Bangladesh is 33,600৳. You can buy the GIGABYTE B860 EAGLE WIFI6E Motherboard at best price from our website or visit any of our showrooms.
