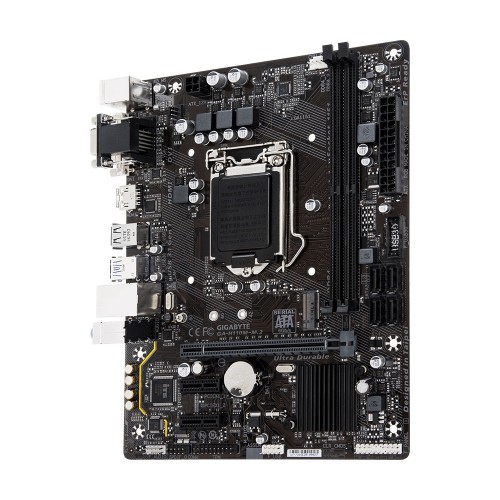

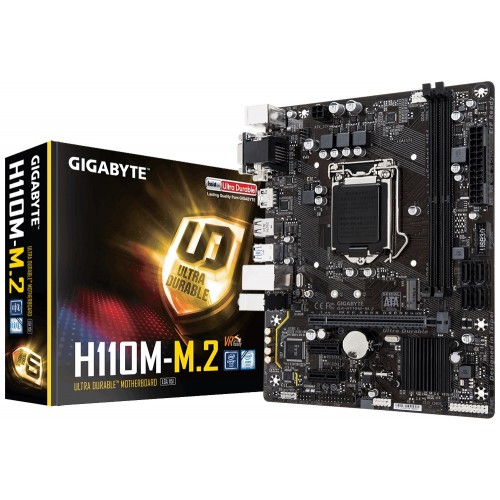

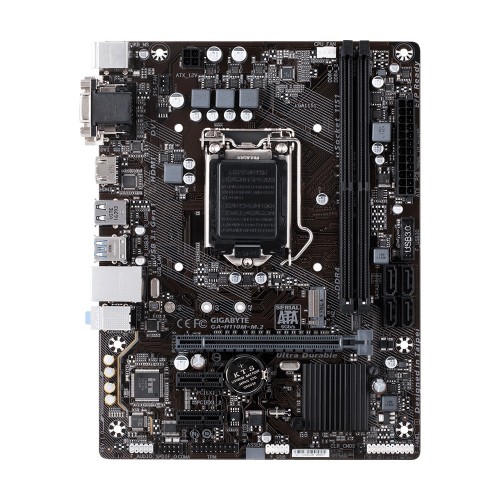

Gigabyte GA-H110M-M.2 DDR4
  • Gigabyte GA-H110M-M.2 DDR4
  • Gigabyte GA-H110M-M.2 DDR4
  • Gigabyte GA-H110M-M.2 DDR4
  • Gigabyte GA-H110M-M.2 DDR4

Gigabyte GA-H110M-M.2 DDR4

Price To be announced
Status Discontinued
Product Code 9075
Brand GIGABYTE

Key Features

  • Model: Gigabyte GA-H110M-M.2 DDR4
  • 7th/6th Gen Intel® Core Processors
  • Dual Channel DDR4, 2 DIMMs
  • HDMI 1.4, DVI-D, D-sub
  • Ultra-Fast M.2
  • View More Info
Discontinued

Specification

Basic Information
Supported CPUSupport for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
ChipsetIntel® H110 Express Chips
BIOS1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
M.2 Socket1 x M.2 Socket 3 connector
Memory
Type2 x DDR4 DIMM
SlotsDual channel memory architecture
Supported MemorySupport for DDR4 2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 32 GB
Graphics
Graphics1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Max Shared Memory 512 MB

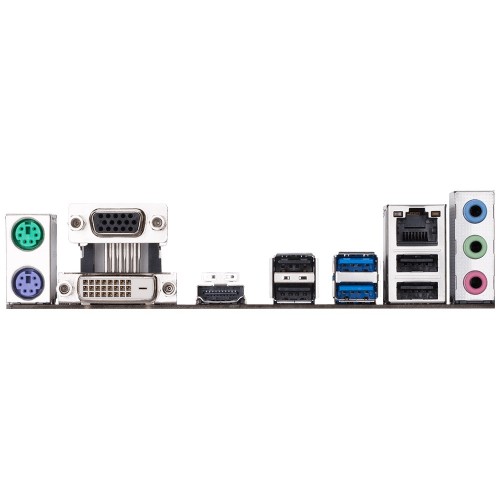

Connector & Ports
HDMI1 x HDMI port
D-Sub (s)1 x D-Sub port
DVI-D (s)1 x DVI-D port
USB (s)4 x USB 3.1 Gen 1 ports
6 x USB 2.0/1.1 ports
LAN Port (s)Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage1 x M.2 connector
4 x SATA 6Gb/s connectors
Audio1 x front panel audio header
3 x audio jacks (Line In, Line Out, Mic In)
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
4 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty02 years

Description

Gigabyte GA-H110M-M.2 DDR4 Supports 7th / 6th Generation Intel® Core Processors.It offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.Intel® Gbe LAN features cFosSpeed helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.This motherboard delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions.4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.With 6th Generation Intel® Core™ Processor, Security and Productivity Solution with built in IT.New compelling usages in one intuitive Customization UI. GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.All new GIGABYTE APP Center, simple and easy use and support Intel® Small Business Basics
