| Price | To be announced |
| Status | Discontinued |
| Product Code | 24588 |
| Brand | GIGABYTE |
| Basic Information | ||
| Supported CPU | Support for 7th/6th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package | |
| Chipset | 4 x SATA 6Gb/s connectors | |
| BIOS | 2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 18.0cm | |
| Audio | 8-Channel Audio High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots |
|
| Memory | ||
| Slots | 2 x DDR4 DIMM sockets | |
| Supported Memory | Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 32 GB of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. |
|
| Max Shared Memory | Maximum shared memory of 1024 MB | |

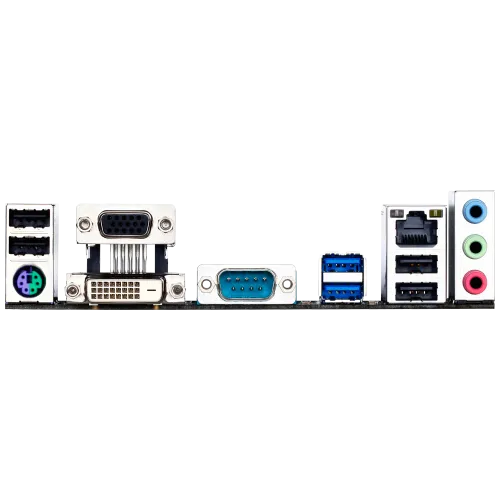

| Connector & Ports | ||
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| USB (s) | Chipset: 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) 5 x USB 2.0/1.1 ports (4 ports on the back panel, 1 port available through the internal USB header) Chipset+GENESYS LOGIC USB 2.0 Hub: 3 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | GbE LAN chip (10/100/1000 Mbit) | |
| Audio | 1 x front panel audio header 3 x audio jacks (Line In, Line Out, Mic In) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
|
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Smart TimeLock Smart Keyboard Smart Backup System Information Viewer USB Blocker Support for Q-Flash Support for Smart Switch Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Warranty Information | ||
| Manufacturing Warranty | 03-Year | |

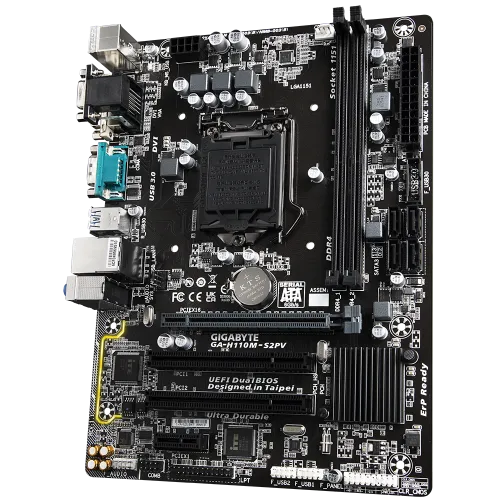

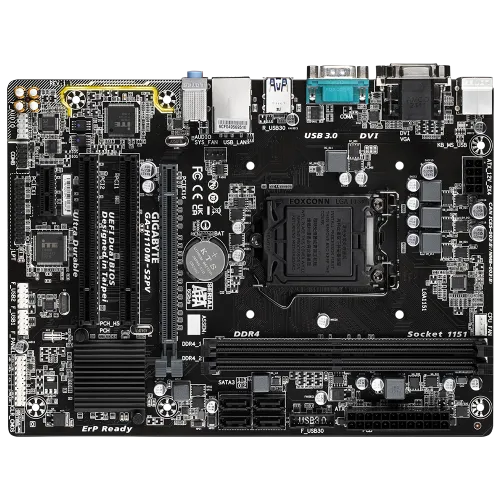

The GIGABYTE GA-H110M S2PV DDR4 Motherboard is compatible with Intel Core Processors from the 7th and 6th generations. It comes with Dual Channel DDR4, 2 DIMMs, 8-channel HD Audio, and High-Quality Audio Capacitors. This motherboard has Audio Noise Guard as well as LED Trace Path Lighting. It contains DVI-D and D-sub connections for connecting to numerous screens. It also includes a GbE LAN and the cFosSpeed Internet Accelerator Software. The new GIGABYTE APP Center is straightforward to use. GIGABYTE UEFI DualBIOS Technology is used on this motherboard. This is Intel Small Business Basics Support. The GIGABYTE 100 series motherboards are compatible with 6th Generation Intel Core CPUs, a 14nm desktop CPU with better speed, power efficiency, and DDR4 memory compatibility, offering cutting-edge features and optimal performance to your next PC build. It provides professional users with high-quality sound resolution and sound expansion to produce the most realistic sound effects. It includes onboard USB 3.0 ports. Users can experience a nearly 10x boost over USB 2.0 with speedy transmission speeds of up to 5 Gbps. Furthermore, backward compatibility with USB 2.0 ensures that legacy USB 2.0 devices will continue to function. The GIGABYTE GA-H110M S2PV DDR4 Motherboard comes with a 03-year warranty.
The latest price of GIGABYTE GA-H110M S2PV DDR4 Motherboard in Bangladesh is 8,800৳. You can buy the GIGABYTE GA-H110M S2PV DDR4 Motherboard at best price from our website or visit any of our showrooms.
