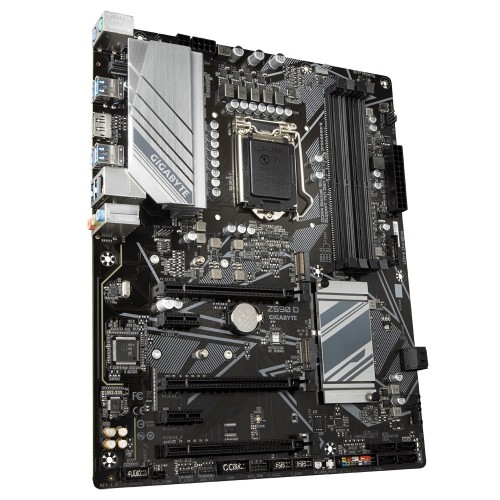

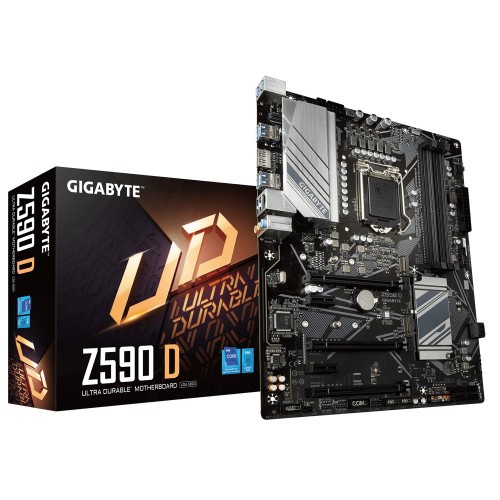

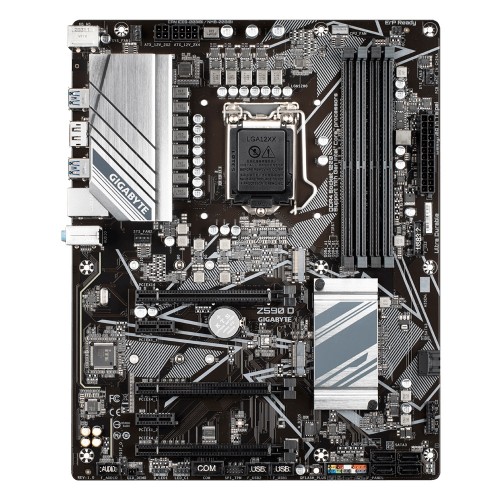

GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard
  • GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard
  • GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard
  • GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard

GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard

Price To be announced
Status Discontinued
Product Code 17498
Brand GIGABYTE

Key Features

  • Model: Z590 D
  • Supports 10th and 11th Gen Intel Core Series Processors
  • Dual Ultra-Fast NVMe SSD Slots
  • Direct 12+1 Phases Digital VRM
  • Exclusive 8118 Gaming LAN
  • View More Info
info Stock limited, Call Before order
Discontinued

Specification

Basic Information
Supported CPULGA1200 package:
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
ChipsetIntel Z590 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
AudioRealtek Audio CODEC
High Definition Audio
2/ 4/ 5.1/ 7.1-channel
Support for S/ PDIF Out
Expansion Slots
PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
M.2 SocketCPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Supported by Only 11th Gen)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Memory
TypeDDR4
Slots4 x DIMM sockets
Supported Memory11th Generation Intel Core i9/ i7/ i5 processors:
Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/ i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128 GB (32 GB single DIMM capacity)
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096 x 2304 @60 Hz
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

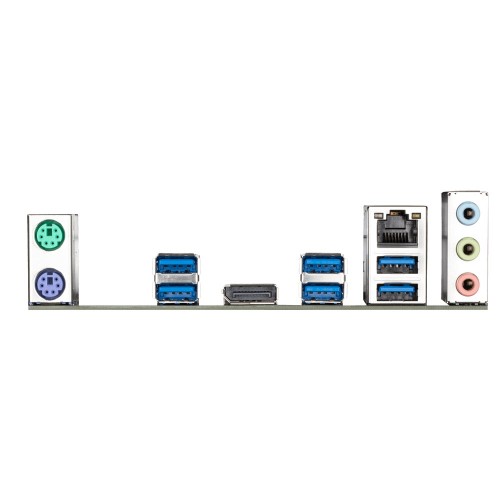

Connector & Ports
Display Port (s)1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
USB (s)8 x USB 3.2 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty3 Years

Description

GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard

The GIGABYTE Z590 D 10th and 11th Gen ATX Motherboard has gooved for Air-Flow and Increase Total Contact Surface. Enlarged heatsink surface area improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic. GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential. With Z590 D Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. With Z590 D Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. Z590 motherboards feature solid plated ATX 12V 8+4 pin power connectors to offer a stable power supply during CPU overloading. The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

What is the price of GIGABYTE Z590 D 11th Gen Motherboard in Bangladesh?

The latest price of GIGABYTE Z590 D 11th Gen Motherboard in Bangladesh is 18,499৳. You can buy the GIGABYTE Z590 D 11th Gen Motherboard at best price from our website or visit any of our showrooms.
