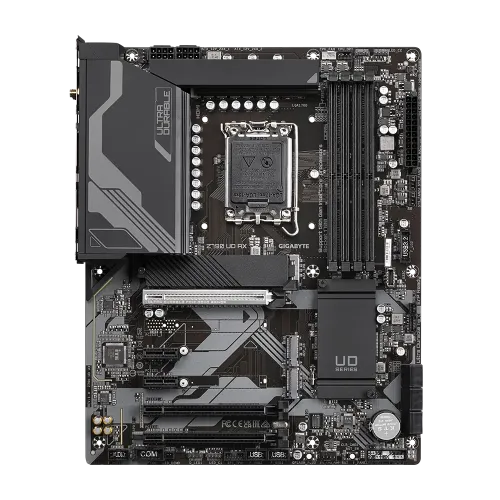

GIGABYTE Z790 UD AX ATX Motherboard
  • GIGABYTE Z790 UD AX ATX Motherboard
  • GIGABYTE Z790 UD AX ATX Motherboard
  • GIGABYTE Z790 UD AX ATX Motherboard
  • GIGABYTE Z790 UD AX ATX Motherboard
  • GIGABYTE Z790 UD AX ATX Motherboard
Product After image | Nagad cashback

GIGABYTE Z790 UD AX ATX Motherboard

Price To be announced
Status Out Of Stock
Product Code 25363
Brand GIGABYTE

Key Features

  • Model: Z790 UD AX
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • View More Info
Out Of Stock

Specification

Basic Information
Supported CPULGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
ChipsetIntel Z790 Express Chipset
BIOS1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorATX Form Factor; 30.5cm x 24.4cm
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCICPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
TypeDDR5
Slots4 x DIMM sockets
Supported Memory7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128GB (32 GB single DIMM capacity)
Graphics
GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI1 x HDMI
Display Port (s)1 x DisplayPort
USB (s)Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleAMD Wi-Fi 6E RZ616 (MT7922A22M)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty3 years

Description

GIGABYTE Z790 UD AX ATX Motherboard

The GIGABYTE Z790 UD AX ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+1 Phases Digital VRM Solution. The motherboard comes with 4x SMD DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. The motherboard is equipped with 3x PCIe 4.0 x4 M.2 Connectors. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. It has PCIe 5.0 x16 Slot with Quick Release & Screwless Design. The GIGABYTE Z790 UD AX is equipped with 2.5GbE LAN & Wi-Fi 6E 802.11ax.2.5G LAN provides up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. The latest Wireless solution 802.11ax Wi-Fi 6E with a new dedicated 6GHz band enables gigabit wireless performance, provides smooth video streaming, a better gaming experience, few dropped connections, and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides a 4X range over BT 4.2 and faster transmission. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 UD AX ATX Motherboard comes with 3 years of warranty.

What is the price of GIGABYTE Z790 UD AX 14th Gen Motherboard in Bangladesh?

The latest price of GIGABYTE Z790 UD AX 14th Gen Motherboard in Bangladesh is 30,300৳. You can buy the GIGABYTE Z790 UD AX 14th Gen Motherboard at best price from our website or visit any of our showrooms.
