| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 29793 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX 220mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |

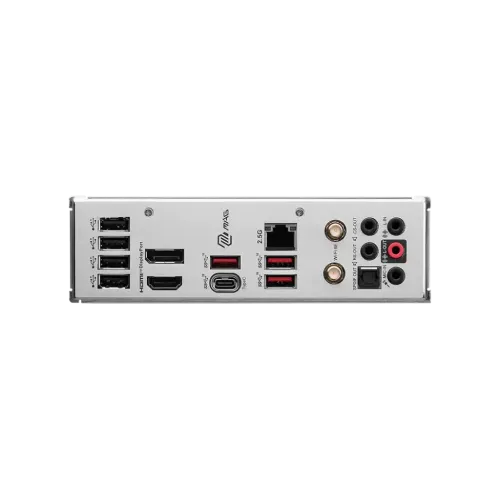

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
The MSI MAG B760M MORTAR MAX WIFI motherboard is designed to deliver exceptional performance and reliability for gaming and professional use. It supports 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket. The motherboard also supports DDR5 memory with speeds up to 7000+(OC) MHz, providing fast and efficient data processing. With its enhanced power design featuring a 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost, the 14th Gen Motherboard ensures stable power delivery and optimal performance. The OC Engine technology maximizes the CPU's power potential. The MSI MAG B760M MORTAR MAX WIFI Motherboard offers lightning-fast gaming experiences with a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2 connectivity. It incorporates a premium thermal solution with an extended heatsink design and M.2 Shield Frozr to keep temperatures in check during intensive workloads. The motherboard's high-quality 6-layer PCB, made with 2oz thickened copper and server-grade materials, ensures durability and reliability.
In Bangladesh, you can get the original MSI MAG B760M MORTAR MAX WIFI mATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MAG B760M MORTAR MAX WIFI Motherboard comes with 3 years warranty.
The latest price of MSI MAG B760M MORTAR MAX WIFI mATX Motherboard in Bangladesh is 25,500৳. You can buy the MSI MAG B760M MORTAR MAX WIFI mATX Motherboard at best price from our website or visit any of our showrooms.
Have question about this product? Get specific details about this product from expert.
Get specific details about this product from customers who own it.
The Product is very good and working very well. The features in this MSI MAG B760M MORTAR MAX WIFI mATX Motherboard are outstanding.
