| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 27833 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
|
| Chipset | Intel Z690 Chipset | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Intel 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

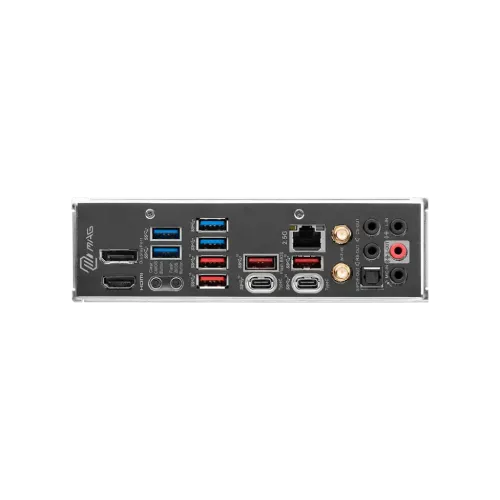

MSI MAG Z790 TOMAHAWK WIFI 14th Gen Motherboard is equipped with an Intel Z790 chipset and LGA 1700 socket. This 14th-generation motherboard has four DDR5 RAM slots supporting dual channel memory and speeds up to 7200 MHz when overclocked. Seven SATA III and four M.2 interfaces provide ample room for storage and support RAID 0, 1, 5, and 10. Install GPUs or other adapter cards via PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots. Take advantage of fast networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; connect to wireless peripherals with ease using Bluetooth 5.2. The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog or digital output. Connect wired peripherals via four USB 3.2 Gen 1 and four Gen 2 Type-A ports, or via USB 3.2 Gen 2 and 2x2 Type-C ports. Output video via DisplayPort and HDMI. The rear I/O panel also sports Clear CMOS and Flash BIOS buttons. Internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more. Wi-Fi 6E supports the 6 GHz spectrum, MU-MIMO, and BSS color technology and delivers speeds up to 2400 Mb/s.
In Bangladesh, you can get original MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI MAG Z790 TOMAHAWK WIFI Motherboard comes with 3 years warranty.
The latest price of MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard in Bangladesh is 42,000৳. You can buy the MSI MAG Z790 TOMAHAWK WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
