| Price | To be announced |
| Status | Discontinued |
| Product Code | 24206 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Processor socket LGA1700 |
|
| Chipset | Intel B660 Chipset | |
| BIOS | BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
|
| Form Factor | M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | 4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | supporting up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|

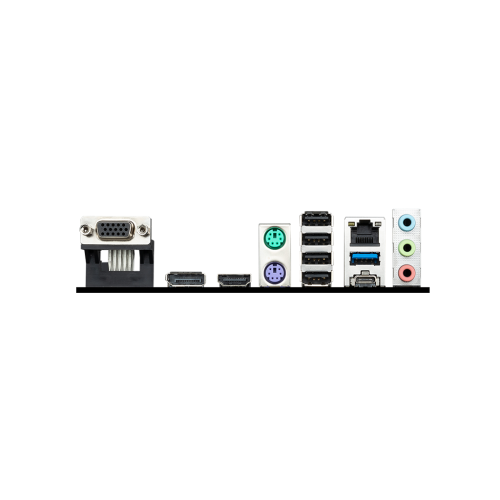

| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz | |
| Display Port (s) | 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz | |
| VGA (s) | 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz | |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

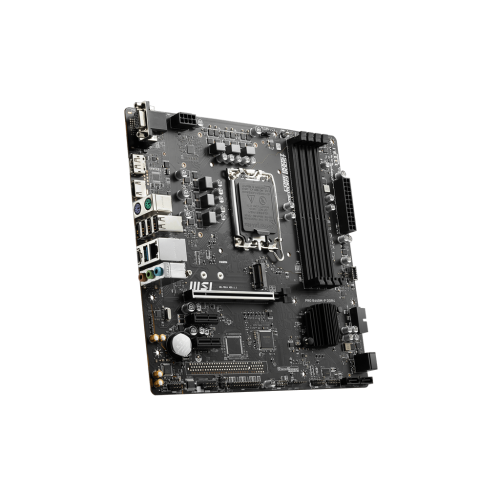

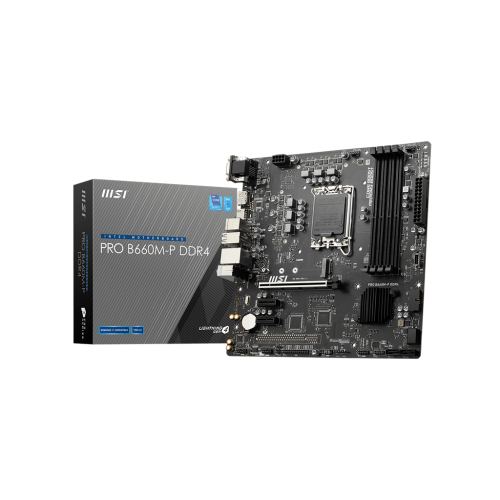

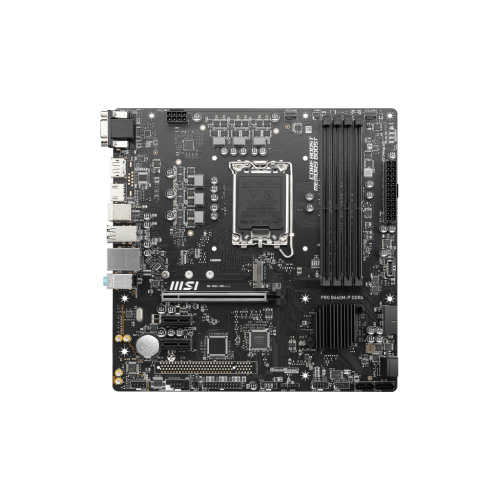

MSI PRO B660M-P DDR4 Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. This motherboard Supports 14th, 13th, 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With the premium layout and digital power design to support more cores and provide better performance. This motherboard has Advanced technology, that helps to deliver pure data signals for the best performance, stability, and compatibility. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. The MSI PRO B660M-P DDR4 motherboard comes with Premium Thermal Solution, which featured with 7W/mK pad, an additional choke thermal pad, and M.2 Shield Frozr are built for high-performance system and non-stop works. You can Upgrade the network solution with a 2.5G LAN for professional and multimedia use. Delivers a secure, stable, and fast network connection. 1Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for professional gamers and demanding users. The Latest MSI PRO B660M-P DDR4 motherboard offers 03 years warranty.
The latest price of MSI PRO B660M-P DDR4 Motherboard in Bangladesh is 15,500৳. You can buy the MSI PRO B660M-P DDR4 Motherboard at best price from our website or visit any of our showrooms.
