| Price | To be announced |
| Status | Out Of Stock |
| Product Code | 34105 |
| Brand | MSI |
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X670 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN | |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
|
| Audio | Audio Connectors | |
| Internal I/O Ports | INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) BACK PANEL PORTS DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 (Type-A) 2.5G LAN Flash BIOS Button HDMI USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

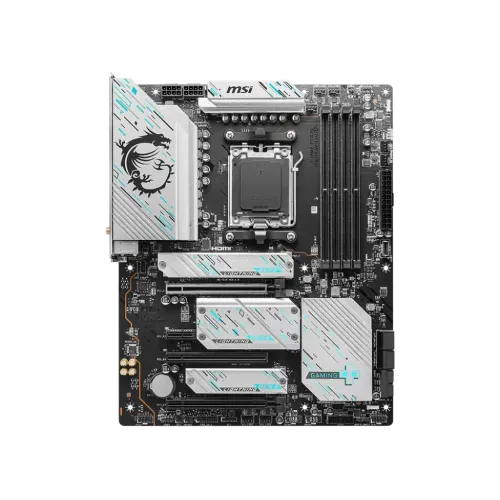

The MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a strong addition to the gaming and computing arenas, designed specifically to support the newest AMD Ryzen 8000 and 7000 Series Desktop Processors. It supports DDR5 Memory at rates of up to 7800+ (OC) MHz, providing a high bandwidth for smooth multitasking and better system responsiveness. The motherboard has an upgraded power architecture that includes a 14+2+1 Duet Rail Power System, twin 8-pin CPU power connections, and Core Boost and Memory Boost technologies, which ensure a consistent power supply for overclocking and optimal system performance. This motherboard has a PCIe 5.0 slot, Lightning Gen5 M.2, and USB 3.2 Gen 2x2, which enable high-speed data transfer. The lengthy Heatsink Design and M.2 Shield Frozr provide a premium thermal solution for high-performance computers, effectively dispersing heat and guaranteeing constant performance throughout lengthy gaming sessions or heavy workloads. The presence of a high-quality PCB with a 6-layer design using 2oz thicker copper and server-grade components ensures longevity, stability, and effective signal transfer for consistent performance. The AUDIO BOOST promises studio-level sound quality that immerses customers in their gaming experiences. Crystal-clear audio improves the whole gaming and entertainment experience. In conclusion, the MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a top-tier pick, with support for the newest AMD CPUs, DDR5 memory, an improved power design, rapid data transfer capabilities, premium cooling solutions, a high-quality PCB, and immersive audio. It is designed to meet the demands of gamers and power users who want a high-performance motherboard for their computer projects.
In Bangladesh, you can get original MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboards to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard comes with a 3-year warranty.
The latest price of MSI X670E GAMING PLUS WIFI AM5 Motherboard in Bangladesh is 33,500৳. You can buy the MSI X670E GAMING PLUS WIFI AM5 Motherboard at best price from our website or visit any of our showrooms.
