closeAudio and Video | ||
IP Camera Input | 5 Channel | |
Display | ||
Interface | 1 HDMI | |
Resolution | HDMI output at up to 1080P resolution | |
Decoding Capacity | Preview Decoding Capability: 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 Playback Decoding Capability: 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×1, 1080P(30fps)×2 |
|
Recording | ||
Record Mode | Alarm Recording; Schedule Recording | |
Video Detection And Alarm | ||
Video Detection | Motion Detection; Mask Alarm | |
Playback And Backup | ||
Sync Playback | 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p | |
Search Mode | Channel number / recording type / date | |
Playback Function | Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing) | |
Backup Mode | USB storage device | |
Third Party Support | ||
Third Party Support | ONVIF; RTSP | |
Network | ||
Ethernet Port | 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port | |
PoE | 4 RJ45 self-adaptive 10/100 Mbps network interface | |
Network Function | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS |
|
Smart Phone | Android; iOS; P2P | |
Storage | ||
Internal HDD | Up to 10 TB capacity for each HDD | |
eSATA | 1 SATA interfaces | |
Auxiliary Interface | ||
USB | 2×USB2.0 | |
Power | ||
Power Supply | DC48V | |
Power Consumption | ≤20W (without HDD) | |
Construction | ||
Dimensions | 45.1×255×231mm, (1.78×10.04×9.09 inch) | |
Net Weight | 0.95Kg (2.09lb) | |
Warranty | ||
Manufacturing Warranty | 1 year |

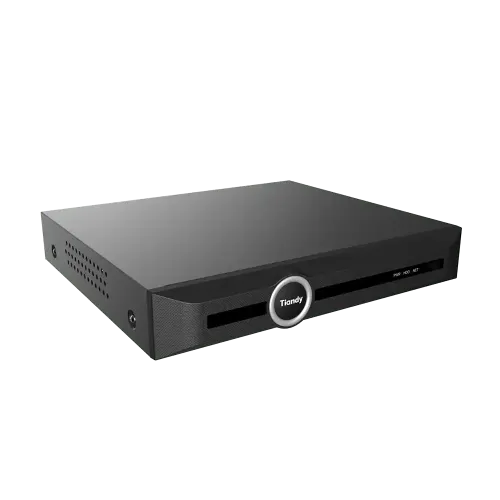

The Tiandy TC-R3105 is a flexible 5-channel PoE NVR (Network Video Recorder) that can handle up to five IP camera inputs, making it excellent for small to medium-sized surveillance systems. The Tiandy TC-R3105 has a large access bandwidth of 60Mbps and a forwarding bandwidth of 40Mbps, guaranteeing smooth and stable video transmission for high-quality monitoring. This TC-R3105 NVR supports a variety of video compression standards, including S+265, H.265, S+264, and H.264, making optimal use of storage space and bandwidth. The sophisticated S+265 compression technology is especially remarkable since it may cut storage space needs by up to 75%, greatly lowering storage expenses. The Tiandy TC-R3105 has powerful decoding capabilities and can preview and play a variety of high-resolution video formats. It supports one channel of 5MP, 4MP, and 3MP video at 30fps, as well as two channels of 1080P video at 30fps for preview and playback. This allows users to watch and evaluate high-definition film with clarity and detail from various cameras. The Tiandy TC-R3105 NVR can hold up to 6TB of storage per attached hard drive, making it ideal for large video archives. It has an HDMI output that can handle up to 1080P quality, resulting in excellent and vivid video projection on connected displays. A self-adaptive 10/100 Mbps RJ-45 Ethernet connector for network communication is available, as are four PoE (Power over Ethernet) RJ-45 ports, which provide both power and data to the linked IP cameras via a single cable. The Tiandy TC-R3105 enables cloud updates, guaranteeing that the system is up to date with the most recent features and security advances. This NVR is an effective and dependable choice for anyone looking to set up a comprehensive video surveillance system with excellent storage and playback features.
In Bangladesh, you can get original Tiandy TC-R3105 5 Channel PoE NVR From Star Tech. We have a large collection of latest Tiandy NVR to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Tiandy TC-R3105 5 Channel PoE NVR comes with 1 Years of warranty.
The latest price of Tiandy TC-R3105 5 Channel NVR in Bangladesh is 5,640৳. You can buy the Tiandy TC-R3105 5 Channel NVR at best price from our website or visit any of our showrooms.
